Incomplete lineage sorting and introgression among genera and species of Liliaceae tribe Tulipeae: insights from phylogenomics

Abstract

Background

Phylogenetic research in Tulipa (Liliaceae), a genus of significant economic and horticultural value, has relied on limited nuclear (mostly nuclear ribosomal internal transcribed spacer, nrITS) and plastid DNA sequences, resulting in low-resolution phylogenetic trees and uncertain intrageneric classifications. The genus, noted for its large genome, presents discordant relationships among Amana, Erythronium, and Tulipa, likely due to incomplete lineage sorting (ILS) and/or reticulate evolution. Thus, phylogenomic approaches are needed to clarify these relationships and the conflicting signals within the tribe Tulipeae.

Results

We newly sequenced 50 transcriptomes of 46 species of tribe Tulipeae (including multiple accessions of all four genera) and one outgroup species of the sister tribe Lilieae (Notholirion campanulatum), and downloaded 15 previously published transcriptomes of tribe Tulipeae to supplement the sampling. One plastid dataset (74 plastid protein-coding genes, PCGs) and one nuclear dataset (2594 nuclear orthologous genes, OGs) were constructed, with the latter used for species tree inference based on maximum likelihood (ML) and multi-species coalescent (MSC) methods. To investigate causes of gene tree discordance, “site con/discordance factors” (sCF and sDF1/sDF2) were calculated first, after which phylogenetic nodes displaying high or imbalanced sDF1/2 were selected for phylogenetic network analyses and polytomy tests to determine whether ILS or reticulate evolution best explain incongruence. Key relationships not resolved by this technique, especially those among Amana, Erythronium, and Tulipa, were further investigated by applying D-statistics and QuIBL.

Conclusions

We failed to reconstruct a reliable and unambiguous evolutionary history among Amana, Erythronium, and Tulipa due to especially pervasive ILS and reticulate evolution, likely caused either by obscured minority phylogenetic signal or differing signals among genomic compartments. However, within Tulipa we confirmed the monophyly of most subgenera, with the exception of two species in the small subgenus Orithyia, of which Tulipa heterophylla was recovered as sister to the remainder of the genus, whereas T. sinkiangensis clustered within subgenus Tulipa. In contrast, most traditional sections of Tulipa were found to be non-monophyletic.

Background

Tulipa L. (Liliaceae, Lilioideae) is a northern temperate to subtropical Old World genus of some 76 species [1] world-renowned for its considerable economic value and horticultural interest (Fig. 1). All tulips are perennial, bulbiferous herbs (geophytes) native to Europe/northwestern Africa to China, but they reach their highest diversity in Central Asia [2]. Although the Liliaceae family has undergone many taxonomic changes, the status of Tulipa and its closest relatives as members of a tribe Tulipeae (or rarely Lilieae s.l.) has remained stable in both traditional and APG classification systems [3, 4].

Fig. 1

Representative members of Liliaceae tribe Tulipeae. A Gagea granulosa. B G. serotina (= Lloydia serotina). C Amana edulis. D Erythronium sibiricum. E Tulipa heterophylla. F, T. heteropetala. G T. uniflora. H T. clusiana (subgenus Clusianae). I T. montana (subgenus Clusianae). J T. dasystemon (subgenus Eriostemones). K T. saxatilis (subgenus Eriostemones). L T. turkestanica (subgenus Eriostemones). M T. sinkiangensis. N T. kaufmanniana (subgenus Tulipa). O T. thianschanica (subgenus Tulipa). P T. altaica (subgenus Tulipa). Photograph H by Xiang-Yu Zhou, all others by Xin Zhong

Apart from Tulipa, the tribe Tulipeae also includes three other genera: Amana Honda, Erythronium L., and Gagea Salisb. (including Lloydia Salisb. ex Rchb.) [5,6,7]. There is substantial evidence that Gagea is sister to the other members of Tulipeae. However, there are ongoing debates regarding the phylogenetic relationships among the latter three genera. Analyses based on the nuclear ribosomal internal transcribed spacer (nrITS) and several plastid loci (matK, rbcL, rps16, etc., and even whole plastomes) employing different models (Maximum Parsimony [MP], ML, Bayesian) have yielded inconsistent results with support for all possible resolutions of relationships among the three genera (Table 1) [5,6,7,8,9,10,11,12,13]. Although there is increasing molecular systematic evidence, particularly from whole plastomes, to support a sister relationship between Amana and Erythronium, the true evolutionary history may be otherwise, since there is still no published study based on low copy nuclear genes. Inconsistent results from different studies indicate that complex evolutionary phenomena like plastid capture or incomplete lineage sorting may lead to phylogenetic incongruence between nuclear and plastid genomes, but without a broad sampling of nuclear genomic loci we lack a path to test this.

Table 1 Comparison of the phylogenetic relationship among Erythronium, Amana, and Tulipa. The gene regions and methods used for analysis are indicated. Sister groups are abbreviated as their initials (e.g., TA|E means sister relationship between Tulipa and Amana)

Moreover, many taxonomic issues remain unresolved within Tulipa. Contemporary studies mostly rely on the classification system of Zonneveld [14, 15], which divides Tulipa into four subgenera (Orithyia, Clusianae, Eriostemones, and Tulipa) according to nuclear DNA content and morphology. Based on sequences of nrITS and five plastid regions (trnL intron, trnL-F intergenic spacer, rpl16 intron, rps12 intron, partial matK), Christenhus et al. [1] confirmed the monophyly of three subgenera in this classification system, but the monophyly of Orithyia could not be tested since only one species of that group (T. uniflora) had been sampled. However, limited by very low resolution and support for relationships below the level of subgenus, some clades in their study collapsed into polytomies, meaning that no study to date has had sufficient sampling of multi-genomic loci and taxa to adequately assess species relationships or evaluate the natural status of recognized taxonomic sections within the subgenera.

An ideal approach to further resolve the phylogeny of Tulipa and its relationship to related genera would be whole-genome-sequencing (WGS), but this is time-consuming and costly. In addition, the very large genome size (e.g., Tulipa, DNA 2 C-value = 32–69 pg) [15] makes this methodologically prohibitive at the present time for most of the species. RNA sequencing (RNA-Seq), on the other hand, is an appropriate alternative by which numerous genes and their different evolutionary histories can be analyzed to uncover phylogenetic relationships and analyze gene tree conflict [16,17,18]. Robust gene sampling of both the nuclear and plastid genomes is possible because plastid protein-coding genes (PCGs) are almost entirely transcribed [19].

Of course, an increase in the amount of available molecular phylogenetic data, on its own, is unlikely to resolve conflicting phylogenetic signals among different gene regions and genomes (nuclear, plastid, mitochondrial) without consideration of alternative methods of phylogenetic analysis, because standard species tree inference methods do not explicitly differentiate causes of gene tree conflict [20]. Instead, it is necessary to try to reveal underlying evolutionary causes of gene tree discordance, such as incomplete lineage sorting (ILS; in the retention of ancestral allelic polymorphisms among descendant lineages) and/or reticulation (the transfer of gene material between species [21].

In this study, we newly sequenced 50 transcriptomes of 46 species of Tulipeae (including multiple accessions of several species), representing all four genera (and their major clades [1, 5, 12]). We also included Notholirion campanulatum Cotton & Stearn as an outgroup taxon for two reasons. First, it is a member of the tribe Lilieae, a group that stands as the sister lineage to the tribe Tulipeae. Second, its native range—the Qinghai-Tibet Plateau (QTP) and adjacent regions—serves to minimize potential gene flow [22]. These characteristics make it an ideal outgroup for rooting the phylogenetic trees. Based on this dataset plus 15 previously published transcriptomes of tribe Tulipeae, one plastid dataset and one nuclear dataset (with its two sub-datasets) were constructed for estimating phylogenetic trees by different methods (ML and MSC). Reticulate evolution analyses and polytomy tests were used for exploring inconsistent phylogenetic signals among different trees and thus inferring a most likely phylogeny of tribe Tulipeae, focusing on the genus Tulipa. We also paid special attention to the phylogenetic relationships among Tulipa, Erythronium, and Amana using D-statistics and QuIBL to assess the alternative contributions of ILS and introgression to the substantial gene tree discordance among these lineages.

Results

Phylogenetic tree reconstruction

In our study, well-supported clades were defined as those with ultrafast bootstrap support values (UF value, for ML) ≥ 95 or local posterior probabilities (LPP, for ASTRAL) ≥ 0.95. All of the phylogenetic trees described hereafter can be found in Additional file 1: File S1.

First, considering the plastid genome tree reconstructed from 74 PCGs, about two-thirds of the nodes are highly supported (Fig. 2).

Fig. 2

ML tree based on 74 PCGs. Support values are marked in the form of SH-aLRT/bootstrap value. The support values from low to high corresponds to the gradient color from red to blue

The monophyly of all four ingroup genera with the topology of (Gagea, (Tulipa, (Erythronium, Amana))) is well supported. Within genus Tulipa, the subgenera Clusianae, Eriostemones, and Tulipa are supported to be monophyletic, whereas subgenus Orithyia is not: T. heterophylla and T. heteropetala are sister to all other taxa of Tulipa successively, and T. sinkiangensis is sister to subgenus Tulipa.

However, these plastid-based results show limited phylogenetic resolution at the species level. Some presumably closely related samples were not sister or even in the same clade, such as T. patens (this study)/T. patens (NCBI), T. humilis/T. humilis2, T. thianschanica (this study)/T. thianschanica (NCBI), T. iliensis (this study)/T. iliensis (NCBI), and T. × gesneriana (this study)/T. × gesneriana (NCBI). This outcome is influenced not only by the inherent characteristics of plastid PCGs but also by factors such as misidentifications or species complexes, which will be further discussed in the “ Discussion” section.

Turning to the low-copy nuclear genome topology, the reconstructed ML trees and ASTRAL trees from 2594 nuclear OGs (and its subsets) are generally well supported, albeit with a few nodes that lack support (Figs. 3 and 4). Notably, the nodes with lowest support values in both the ML and coalescent trees are related to T. sinkiangensis.

Fig. 3

ML tree based on different datasets. Support values are marked in the form of SH-aLRT/bootstrap value. Support values from low to high corresponds to the gradient color from red to blue. E1, E2, T1, T2, alt, acu, and eic are shorthands for specific clades. The phylogenetic relationships different from that of original tree (2594 OGs) are marked with red dotted lines. a1 Phylogenetic relationships reconstructed from concatenated 2594 OGs, among them, 2037 OGs were considered suitable for phylogenetic analysis by IQ-TREE2, thus a2 was also generated. b Phylogenetic relationship reconstructed by 1594 OGs with relatively low copy number (no topology change). c Phylogenetic relationship reconstructed by 1000 OGs with relatively high copy number

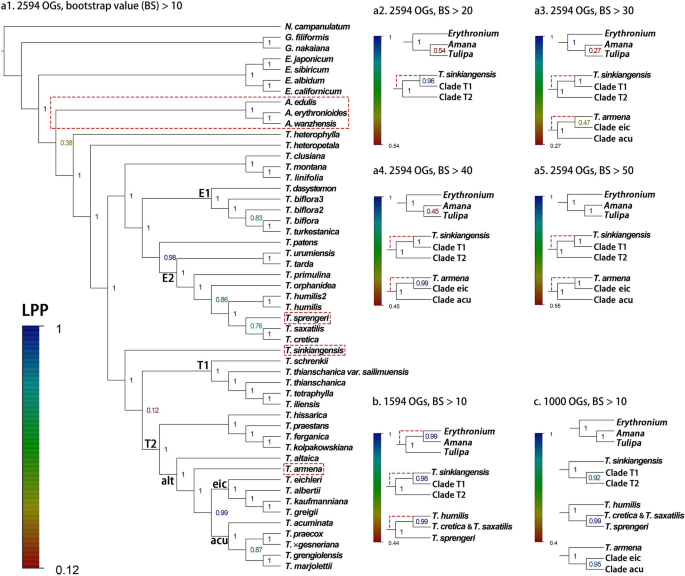

Fig. 4

Coalescent trees based on different datasets. ASTRAL support values (local posterior probability, LPP) of each node are marked. The values from low to high corresponds to the gradient color from red to blue. E1, E2, T1, T2, alt, acu, and eic are shorthands for specific clades. h, sc, T1, T2, t1, and t2 are shorthands for specific clades. The phylogenetic relationships different from that of original tree (2594 OGs, BS > 10) are marked with red dotted lines. a1–a5 Phylogenetic relationships reconstructed from 2594 gene trees with five different threshold bootstrap values ranging from 10 to 50. b Phylogenetic relationships reconstructed by 1594 OGs with relatively low copy number. c Phylogenetic relationship reconstructed by 1000 OGs with relatively high copy number (no topology change)

At the genus level, the monophyly of Amana, Eriostemones, Gagea, and Tulipa is highly supported in the nuclear trees. However, the topology of the ingroup was resolved differently from the plastid genome tree, recovering (Gagea, (Erythronium, (Tulipa, Amana))), which is only weakly supported in the coalescent tree based on 2594 OGs. Conversely, in the dataset of 1594 OGs with a relatively low copy number, the topology recovered was (Gagea, (Tulipa, (Erythronium, Amana))) with high support (Fig. 4). Interestingly, the phylogenetic relationships reconstructed by ASTRAL with the remaining higher-copy 1000 OGs are exactly the same as those reconstructed with all OGs, with even greater support. There are no topological differences between ML trees based on 1594 and 2594 OGs (Fig. 3).

At the subgenus level within Tulipa all nuclear trees are consistent with the plastid tree, and the subgenera of genus Tulipa are well supported except for subg. Orithyia. Subgenus Eriostemones (excluding T. patens) gives rise to two main clades, one of which contains all T. biflora samples. We refer to this clade as Clade E1, and the other as Clade E2. Subgenus Tulipa (excluding T. sinkiangensis) similarly gives rise to two primary clades. One clade is represented by T. iliensis, which we abbreviate as Clade T1. The other is referred to as Clade T2. For ease of discussion, within Clade T2, we define three sub-clades: Clade alt, representing T. altaica and its sister taxa; Clade acu, representing T. acuminata and its sister taxa; and Clade eic, representing T. eichleri and its sister taxa.

In contrast, most recognized sections of Tulipa (Additional file 2: Table S1) are not supported in this study, with the exception of Neo-tulipae, sect. Saxatiles (embedded in sect. Sylvestres) and sects. Multiflorae and Spiranthera (only one sample).

Regarding species placements, T. turkestanica was found to be embedded in the clade of T. biflora, and the phylogenetic position of T. patens, T. sprengeri, T. sinkiangensis, and T. armena are different among analyses (Figs. 3 and 4). One important point is that T. thianschanica var. sailimuensis is no closer to T. thianschanica than T. iliensis and T. tetraphylla.

Finally, we used a simulation-based approach to characterize ILS expectations based on the nuclear topology. Using this approach, we found that the plastid topology was significantly outside of ILS expectations according to the Robinson-Foulds-based metric (one-tailed t-test with equal variance; P < 1e − 20), suggesting that ILS alone cannot explain the plastid topology. Thus, the differences we observed may be due to complex evolutionary processes, a possibility investigated further below.

It is worth noting that we also observed conflict among nuclear analyses; there are several nodes in the ML tree that have high support but conflict with those in our coalescent tree. These nodes may be those most affected by ILS, and the coalescent tree is therefore likely a better reflection of the real evolutionary history of these taxa [23], because concatenation is positively misleading under high ILS with introgression (although both concatenation and coalescent methods are inconsistent in the presence of introgression [21, 24, 25] as our result indicated (see below, Conflicting nuclear phylogenetic signals). Therefore, we have taken the 1594 OGs-based coalescent tree as the main basis for our discussion, and will further elaborate on the logic of this choice further below.

Conflicting nuclear phylogenetic signals

For those nodes that may contain taxa involved in ILS or introgression, the ratios of sCF/sDF1/sDF2 are shown in Figs. 5 and 6 (pie charts; shown only to two significant digits; further data can be found in Additional file 1: File S2). Unlike the consistent support recovered across the backbone, most clades of the two trees showed internal conflicting phylogenetic signals at shallower levels.

Fig. 5

ML trees based on 2594 OGs. All nodes whose sDF1 and sDF2 are imbalanced or whose sCF is lower than 40 are marked the scale of site (dis)concordance factors as pie charts. The nodes with AGTs are denoted by red letters

Fig. 6

Coalescent trees based on 1594 OGs (BS > 10). All nodes whose sDF1 and sDF2 are imbalanced or whose sCF is lower than 40 are marked the scale of site (dis)concordance factors as pie charts; One node with AGTs is denoted by red letters

Almost no node in tribe Tulipeae (especially Tulipa) has a sCF higher than 50 (%). In ML tree (Fig. 5), anomalous gene trees (AGTs, i.e., incongruent gene trees [IGTs] with a higher proportion than congruent gene tree [CGT] [26], as detailed in the “Distinguishing between ILS and introgression” section in “ Methods”) were detected at five nodes which corresponds to five problematic taxa with unstable positions among the analyses: genus Amana, T. patens, T. sprengeri, T. sinkiangensis, and T. armena.

Considering that only one node in the ASTRAL tree has a detected AGTs (the node of T. sinkiangensis, Fig. 6, vs. five nodes in ML tree), we feel that the phylogenetic relationships in our ASTRAL tree is the more reliable estimate and was the basis of our later analyses. Although most nodes have imbalanced sDF1/2 in the ASTRAL tree, we focused on selecting taxa near those nodes with |sDF1 − sDF2|≥ 5 (%) as problematic taxa also, which may be affected by introgression but with stable position: (1) E. albidum, E. californicum, and Eurasian branch of Erythronium; (2) T. linifolia, T. montana and T. clusiana; (3) T. dasystemon; (4) T. orphanidea; (5) T. thianschanica var. sailimuensis; (6) T. hissarica.

Polytomy tests and reticulate evolution

Considering that some signals of phylogenetic conflict may arise from polytomy, we first conducted a polytomy test on the 1594 OGs-based ASTRAL tree (Additional file 1: File S3, partly shown in Fig. 7). There are three nodes with p-value > 0.05, which suggests polytomies for T. biflora/T. turkestanica, T. gesneriana/T. praecox/Neo-tulipae, and T. orphanidea/T. sprengeri/sect. Saxatiles. If taking a lower cutoff value p-value > 0.01, then T. marjolettii and T. grengiolensis, two species of Neo-tulipae, could also be considered to form a polytomy.

Fig. 7

Four nodes with P-value > 0.01 in polytomy tests

Figure 8 shows the best-fit network analyses to detect reticulate evolution for major problematic taxa.

Fig. 8

Best networks predicted byPHYLONETWORKS. The gene flows involving problematic taxa are the focuses, which are shown in red. The unimportant gene flows are represented in blue and not highlighted. The gene flows appeared many times in suboptimal networks are also displayed in form of green arc dotted line. Those values next to each hybrid edge indicate inheritance probabilities

First, to explore the deeper relationships among Amana, Erythronium, and Tulipa, representatives of all major taxa of tr. Tulipeae were selected for reticulate evolution analysis (Figs. 8a, b).

This analysis predicted two different topologies. The first topology, denoted as ((Tulipa, Amana), Erythronium) (abbreviated as TA|E, Fig. 8a), appeared more robust and yielded higher scores. This network prediction suggested that Tulipa acquired 12.9% of its genome (as represented by transcriptomic loci) from the common ancestor of Amana, Erythronium, and Tulipa. Additionally, a significant gene flow of 40% was detected between Amana and the American branches of Erythronium. These findings therefore partially explain why Amana and Erythronium are occasionally sister. Furthermore, within the genus Erythronium, it was found that the ancestor of E. californicum (western North American) contributed approximately 15 and 35% of genetic components to E. japonicum (Eurasia) and E. albidum (Eastern North American), respectively.

Figure 8b illustrates the network topology identified as ((Erythronium, Amana), Tulipa) (abbreviated as EA|T). Under this network, nearly 50% gene flow from the ancestor of Tulipa to Amana suggests that Amana is a hybrid product between Erythronium and Tulipa. Conversely, alternative predictions propose that the ancestor of Amana provided 15% of genetic components to Tulipa. However, upon conducting subsequent rounds of analysis, wherein higher levels of gene flow were considered, all networks with the EA|T structure transitioned to the TA|E configuration.

In other groups, we mainly discuss the phylogenetic relationship of each subgenus within the genus Tulipa, taking into account the following issues: (1) N. campanulatum is distantly related to the ingroup; (2) introgressions between Gagea and Erythronium/Amana/Tulipa were detected frequently; and (3) the relationship between Amana and Tulipa is still unclear, with evident gene flow but different details regarding this gene flow depending on the favored network. We replaced the outgroup with E. albidum, a more suitable outgroup choice for lower phylogenetic levels that also does not overlap geographically with Tulipa and which yields no evidence of recent gene flow between the two genera aside from the ancient events identified in the backbone.

In subgenus Clusianae, as previously predicted, two possible introgressions among T. clusiana, T. montana, and T. linifolia were detected (Fig. 8c). The best network shows that T. liniflora acquired more than 20% of its genome from the ancestor of subgenus Clusianae.

In subgenus Eriostemones (Fig. 8d), the optimal network reveals that clade E1 acquired 16.9% of its genome from T. tarda. This elucidates why T. patens is intermittently positioned as the basal taxa of subg. Eriostemones and sometimes only as the sister of Clade E2. Additionally, gene flow from the ancestor of subg. Eriostemones to T. patens in another network further explain this.

Another network also detected gene flow from T. tarda to T. dasystemon, providing an explanation for T. dasystemon’s inclusion as a member of Clade E2. The optimal network places T. sprengeri as the sister of T. humilis, T. saxatilis, and T. cretica, aligning with the plastid phylogenetic tree. The reason for this cytonuclear discord may therefore be the 18.6% genome exchange between T. sprengeri and T. saxatilis as recovered in this network.

In subgenus Tulipa, T. sinkiangensis is supported as the sister to the entire subgenus. However, T. sinkiangensis obtained 38.3% of its genome from the ancestral lineage of Clade T1. This may be why T. sinkiangensis is considered the sister of Clade T1 in the nuclear gene phylogeny (Fig. 8e). T. thianschanica var. sailimuensis has obtained 27.8% of its genetic components from T. iliensis (Fig. 8e).

T. eichleri contributed 27% of its genetic components to Clade acu, while another network predicted gene flow between Clade acu and Clade eic. This explains the fluctuation in the position of T. armena between the base of Clade acu and the base of Clade acu and Clade eic. (Fig. 8f).

Discussion

Strategies for discriminating between introgression and ILS

Introgression is a common phenomenon in plant evolution [27] and distinguishing it from ILS is a crucial step in phylogenetic analysis. The processes of introgression and ILS both create gene tree discordance, but they predict differing gene tree distributions that can be distinguished using a variety of probabilistic approaches [28]. Common phylogenetic tools to distinguish ILS and introgression, such as D-statistics (a site-based method) [29] and quantifying introgression via branch lengths (QuIBL, a tree-based method) [30], can quickly detect the existence of introgression by testing whether the null hypothesis (that only ILS occurred) can be rejected. However, these methods cannot directly quantify the proportion of introgression present and often impose hard bounds on the maximum number of taxa and topologies that can be tested in one analysis, limiting their application in species-rich clades [28]. On the other hand, although some phylogenetic tools for reticulate evolution, such as PHYLONETWORKS [31], can infer networks of arbitrary shape with quantified introgression, these methods require an unrealistically large amount of computational resources and time even with moderate numbers of taxa [32]. Hence, these methods are limited either by a priori sampling limitations (for D-statistics and QuIBL) or by indirect sampling limitations via computational resource scaling (for PHYLONETWORKS), creating the need for “divide-and-conquer” approaches for the common case where it is unclear which taxa specifically are involved in hybridization.

One feasible “dive-and-conquer” approach to roughly identify nodes affected by ILS/introgression, and thus to adjust the strategy and scope of introgression analysis accordingly, is to identify globally on a phylogeny those problematic nodes that would form the basis for smaller-scale tests with more elaborate probabilistic approaches. As implemented here, first we calculate for each node estimates of the site concordance factor (sCF) and two site discordance factors (sDF1 and sDF2). As sDF1/2 actually represents the proportion of two IGTs (detailed in the section “Distinguishing between ILS and introgression” in “ Methods”), in a quartet (based on parsimony-informative sites), the taxa affected by ILS and introgression can be roughly determined from the high/imbalanced values of sDF1/2 respectively.

We then reduce the scope of hybridization inference to those nodes with suggestive patterns of discord on the basis of site discordance factors, in this case those nodes with imbalanced sDF1/2, yielding on a quantitative basis for identifying candidates for a more computationally feasible sub-analysis. Specifically, there are two possible scenarios to consider: for Amana (A), Erythronium (E), and Tulipa (T), we can determine that the bipartition EA|T corresponds to CGT based on a plastid derived tree topology, whereas the alternative bipartition TA|E corresponds to the IGT of higher proportion (versus TE|A). This indicates two possible introgressions: one is between A and T, and the other is directional gene flow from an unsampled common ancestor/sister of “E, A and T” to E, two alternative scenarios that can be distinguished by divergence time, internal branch length, and other non-topological information.

Phylogenetic framework of tribe Tulipeae

The tribe Tulipeae consists of four monophyletic genera: Amana, Erythronium, Gagea (including Lloydia), and Tulipa. Gagea has always been regarded as sister to the others, which is supported by our phylogenetic study and others [5,6,7]. The relationships among the three remaining genera, however, remains ambiguous. In addition to detecting high levels of ILS within this tribe, we also documented numerous cases of introgression among Amana, Erythronium, and Tulipa, which makes their phylogenetic relationship particularly challenging to resolve. Previous studies showed substantial disagreement, recovering all three possible resolutions of these genera, but there are very few studies that strongly support a sister relationship between Erythronium and Tulipa [6, 9]; neither does our result.

Most previous studies support a topology of EA|T with Erythronium sister to Amana [5, 7, 10, 11, 13] (Table 1). This is consistent with the plastid ML tree and the ASTRAL tree based on our lower copy nuclear dataset (1594 OGs). The sDF values also show that the parsimony-informative sites slightly favor Amana as sister to Erythronium (Figs. 5 and 6).

In contrast, most of the networks predicted by PHYLONETWORKS, including the best ones, indicate that Amana is sister to Tulipa (not Erythronium). Those networks with a structure of TA|E scored much lower (better) than the networks with structure of EA|T, even if we deliberately used the guide tree of EA|T structure. We must take this “dissent” seriously. When combined with high levels of ILS, even low levels of extant introgression (e.g., among non-sister clades) can cause AGTs and thus misleading species tree estimations, while even massive introgression may not necessarily lead to AGTs [33, 34]. With the simultaneous presence of ILS and introgression, neither concatenation nor coalescent methods are robust, while coalescent-based networks are consistent [24]. In essence, the MPL model has the ability to take both ILS and introgression into account [35], therefore potentially resolving discord quite differently from methods assuming a tree model, which gives the result substantial weight.

Because of the uncertain relationship, we used three topologies: ((Erythronium, Amana), Tulipa), ((Tulipa, Erythronium), Amana), and ((Tulipa, Amana), Erythronium) to carry out D-statistic analyses (shorthand as EA|T, TE|A and TA|E, respectively) and chose N. campanulatum (N, outgroup), all spp. in Erythronium and Amana, and 6 spp. in Tulipa as samples for 72 independent sets of D-statistic runs. All 72 test groups using topology TE|A detected significant introgression between Erythronium and Amana (Additional file 2: Table S2), which indicated that TE|A is an unlikely evolutionary history because introgression only occurred between Erythronium and Amana, which would lead to the dominance of TEA (polytomy) or EA|T but would not explain a close relationship between Amana and Tulipa. Similar to TE|A, the results based on TA|E showed that there was highly significant introgression between Erythronium and Amana in all the 72 test groups (P-value = 0, Additional file 2: Table S2). This result is unusual because the D values do not show a particularly obvious species correlation, if the structure of TA|E is true, then each branch of Amana and Erythronium (geographically isolated) all have experienced continuous introgressions, which is very doubtful. EA|T’s results showed that 38 out of 72 test groups detected introgression between Amana and Tulipa; 5 test groups showed introgression between Erythronium and Tulipa; the remaining 29 test groups did not detect introgression (Additional file 2: Table S2). All E3 (18) and almost all E2 (17) test groups showed introgression between Amana and Tulipa, while most E1 (15) and E4 (13) test groups did not support the existence of any introgression. It is intriguing that all instances of introgression between Erythronium and Tulipa are exclusively linked to E4. Given the general belief that the divergence time of Erythronium is earlier than that of Tulipa and Amana [6, 12, 36], this result is reasonable, because the introgression signal is related to each branch of Erythronium, but is almost independent of Amana and Tulipa. These findings suggest that either Erythronium and Amana have undergone extensive and continuous gene flow in their history (TA|E), and/or they are actually sister taxa (EA|T).

However, the analyses based on internal branch lengths provided different results (Additional file 2: Table S3). Based on the same groupings described above for the D-statistic, QuIBL were used for performing internal branch length analysis of the 72 test groups. The mean frequencies of gene trees supporting specific topologies are as follows: 28.07% (TE|A), 36.02% (TA|E), and 35.37% (EA|T). This indicates that both TA|E and EA|T are potential candidates for being consistent with the true species tree. However, given that introgression between Amana and Tulipa affects approximately 66.67% of triplets and 20.56% of loci, which is greater than the impact of introgression between Amana and Erythronium (47.22% and 19.76%), TA|E is the best supported topology.

Due to the close proximity of the proportions of gene trees that support the three triplets, it was difficult for us to interpret the results of QuIBL. As a result, we used ASTRAL for calculating the corresponding coalescent trees of 72 triplets with N as an outgroup, and the phylogenetic relationships were inferred finally (Table 2 and Additional file 1: File S4). In terms of quantity, TA|E is more frequent than EA|T, but interestingly, the Eurasian branch of Erythronium (E1 & E2) strongly supports Tulipa to be sister to Amana, while the Western North America branch (E4) strongly supports Erythronium and Amana as sister groups, and the Eastern North America branch (E3) supports both of them. As the basal taxon of gen. Tulipa, T. heterophylla (T1) seems to have a special status, because it supports the Eurasian branch of Erythronium to be sister to Amana in 2/3 cases.

Table 2 Topology statistic for coalescent trees of Erythronium, Amana, and Tulipa (2594 OGs)

In order to prevent the instability of phylogenetic tree reconstructed by only four species, we used N as an outgroup, together with both of the Gagea spp., A1, A3, T1-T6, T. biflora and T. hissarica, a total of 13 species to tested different combinations of E1-E4 (Table 3 and Additional file 1: File5). The result was decisive: all the trees including E1 or E2 showed sister relationship of Amana and Tulipa; However, E3, E4 and their combinations supported the sister relationship between Erythronium and Amana. Moreover, if the same taxa were reconstructed by ML method, Amana and Tulipa would be clustered into one branch with high support, which clearly showed that ILS has misled the ML inference.

Table 3 Analysis of phylogenetic tree topology based on different Erythronium species combinations

Overall, the Eurasian group of Erythronium species possesses some unique characteristics compared to its North American counterpart. Specifically, it exhibits a disjunct distribution pattern, yet slightly overlaps with the distribution of Amana. In this scenario, Erythronium’s plastid and nuclear genes appear to have undergone different evolutionary trajectories, with the former supporting a sister relationship with Amana, whereas the latter favor it as a sister to both Tulipa and Amana. Thus, better understanding its genome may be one of the keys to resolving the phylogenetic problems among the three genera. Additionally, E. albidum (eastern North America) showed the characteristics of branches that are half like those of taxa from Eurasian and half like branches of Western North America taxa, which may be related to its homologous polyploidy [12]. In the reticulate evolution analysis not presented in the main text, introgression of about 50% of genetic components from the ancestor of Erythronium to E. albidum was also detected, indicating that E. albidum may retain a relatively ancient genome that sheds light on the phylogenetic history of this genus.

Reconstructing the evolutionary history of tribe Tulipeae

In our study, when using low-copy nuclear datasets (1594 OGs and the datasets used in pre-experiments), ML trees always conflict with coalescent trees, which can be simply explained by ILS. However, when a further 1000 OGs with slightly higher copies are added to the analyses, the support value of this node in coalescent tree decreases rapidly, and finally collapses to a sister relationship between Amana and Tulipa, albeit with poor support. We have reason to believe that although the additional 1000 OGs added later are fewer in number, they may possess stronger phylogenetic signals than the initial 1594 OGs. Moreover, due to their slightly higher copy numbers, they may evolve more quickly. We have noticed that when we add more OGs with higher copies or remove the branches of gene trees with low support values, then the support value at this node tends to increase. It can be predicted, therefore, that if whole genomes could be used in the future for reconstructing their phylogenetic relationships, then the sister relationship between Amana and Tulipa will likely emerge as true. This unusual situation is similar to a scenario discussed by Solís-Lemus et al. [24]. Under cases of high-level introgression (> 30%), ASTRAL will be more and more firmly misled by the wrong structure of introgression with the addition of more well-reconstructed gene trees. Mallet et al. [21] put forward the same view based on a case of the Anopheles gambiae complex: abundant introgression may lead to a “tyranny of the majority,” such that with an increasing number of genes involved, more and more gene trees that are inconsistent with the species tree will impose a quantitative advantage on the phylogenetic result. Therefore, the real history may be similar to the anomaly zone envisaged by Solís-Lemus et al. [24]. In brief, they hypothesize that when introgression occurs between two rapid differentiation events, alleles affected by the introgression from another lineage may immediately experience the second differentiation event without sorting, which makes the two descendant populations (i.e., sister taxa, like Erythronium and Amana) inherit the alleles vertically and by introgression, respectively, and thus lead to an inconsistency between gene trees and the species tree.

With all this said, we want to emphasize that we are not arguing that TA|E must be the wrong topology for these genera. Considering the results of the Robinson-Foulds-based metric (see “Phylogenetic tree eeconstruction” in the “ Results” section), it is necessary to invoke introgression to account for the inconsistency between the plastid and nuclear gene topologies. Therefore, there is another possibility that Amana, indeed, may have experienced multiple hybridization and introgression events with Erythronium, eventually leading to the capture of its plastid. One reason we say this is that the coalescent tree results of 72 quartets showed that E. californicum (from western North America) may have an especially close nuclear relationship with Amana from Asia (Table 2). In fact, instances of introgression between Amana and North American Erythronium were frequently detected (Fig. 8a). In D-statistic analyses, not only E. californicum but also E. japonicum (East Asia) showed a close relationship with Amana (East Asia). In addition, the average divergence time for Tulipa, Erythronium, and Amana is about 22.82 Mya, 24.38 Mya (15.88 Mya for Eurasian branch), and 10.96 Mya respectively [6, 36]. Together these lines of evidence support one of the reasonable migration hypotheses [12]—that the ancestor of the three genera originated in the Far East near the western part of North America, with the ancestor of Erythronium diverging first and spreading westward to form the Eurasian branch, and eastward to form two North American branches. The ancestor of Tulipa also diverged around the same time, with one lineage moving westward to the Tianshan-Pamir region. Another lineage of Tulipa (or possibly Erythronium) remained in the Far East and diverged into early lineages of Amana during the middle to late Miocene.

Another fact to consider is that Amana shares several morphological similarities with Tulipa. Both typically have bulbous (rather than cylindric) bulbs, leaves that are usually free of pigmentation or reticulate venation, and tepals that do not recurve or reflex. These traits distinguish them from Erythronium. However, despite these morphological similarities with Tulipa, Amana has a geographic range more akin to that of Erythronium [5, 12]. Differing genomic partitions alternately correlating with morphology or geography is characteristic of many ancient plastid capture events [37, 38].

We further speculate that the historical distribution range of Amana may have been much broader and substantially overlapping with that of Tulipa and/or Erythronium. This is because under the influence of glaciation, lowland taxa likely underwent southward migration, range contraction, and fragmentation [39]. The migration history of Amana aligns with this scenario [40]. Additionally, plastid capture has been detected in other monocotyledonous herbs (e.g., Hemerocallis, Asphodelaceae) [38], and so a bolder hypothesis is that the ancestor of Amana once inhabited a shared distribution between East Asia and North America, captured its plastid by hybridization.

Phylogenetic relationships within Tulipa

Following the classification framework of genus Tulipa proposed by Veldkamp et al. [14, 15] and Christenhusz et al. [1], our research tested the monophyly of the four currently recognized subgenera. Three of these, namely subg. Tulipa (including T. sinkiangensis), subg. Clusianae and subg. Erythronium, are strongly supported as monophyletic. The phylogenetic relationship among these three subgenera is clear, that is: (Tulipa, (Eriostemones, Clusianae)).

Subgenus Orithyia, however, is not monophyletic. This is not surprising, since there has been a lack of research on the systematics of this subgenus. Zonneveld et al. [14, 15] defined subg. Orithyia with a combination of three characters: a style nearly as long as the ovary, bulb tunics usually naked inside, and DNA 2 C value of only 38–39 pg. They recognized three species, T. uniflora, T. heterophylla, and T. heteropetala, as members of subg. Orithyia, but did not rule out the possibility of T. sinkiangensis and T. thianschanica also being part of this subgenus. However, we now know that T. thianschanica actually belongs to the subg. Tulipa. Subsequently, Christenhusz et al. used only T. uniflora to represent the subgenus in their phylogenetic analysis and warned that the remaining species need to be sampled in order to evaluate the monophyly of the group [1]. Our study shows quite strikingly that T. heterophylla and T. heteropetala are successive sister species to the remainder of the genus Tulipa, whereas T. sinkiangensis is sister to subgenus Tulipa and might be best classified within it. Since T. heterophylla is similar to other Tulipa spp. in morphology, geographical distribution, and phylogeny, there is no sufficient reason to separate it as a monotypic genus as some have proposed. Therefore, following the study by Wilson [36], we suggest the old taxon Eduardoregelia Popov (which includes a single species, Eduardoregelia heterophylla (Regel) Popov, a synonym of T. heterophylla) should be redefined as a new subgenus of Tulipa. As for T. heteropetala and T. uniflora, we only sampled the former, but they share a highly similar morphology, and considering that a previous study has shown their clustering together [6, 36], it is reasonable to continue recognizing them within a now smaller circumscribed subg. Orithyia.

In the small subg. Clusianae, we reconstructed a topology different from Christenhusz et al. [1]. Here we find that T. clusiana is sister to T. montana and T. linifolia. An introgression event, where T. liniflora acquired more than 20% of its genetic components from the ancestor of subg. Clusianae may be reasonable for this conflict (Fig. 8c). Additionally, our plastid phylogenetic tree indicates that T. montana is the basal taxon of subg. Clusianae (Fig. 2), conflicting with results based on nuclear genes. Wilson’s study also demonstrates the same scenario [36], suggesting potential discordance in the evolutionary history between the plastid and nuclear genomes of T. montana.

In subg. Eriostemones, we found that T. turkestanica is embedded within T. biflora (2, 3), and they are supported to form a polytomy (Fig. 8). Research also indicates that they form a complexes characterized by white flowers [36]. Furthermore, three species, T. patens, T. dasystemon, and T. sprengeri have unstable phylogenetic positions, with some of the reasons explained by the results of reticulate evolution analysis in the Polytomy tests and reticulate evolution in “ Results” section (Fig. 8d). Based on the plastid phylogenetic tree (Fig. 1), the T. patans sample from NCBI separates from our T. patans sample, but its position aligns with Wilson et al.’s study [36]. This suggests that the species referred to as “Tulipa patens” may not constitute a natural group, although more data are needed to confirm this. T. dasystemon exhibits cytonuclear conflict, a scenario consistent with findings in Wilson’s study. Therefore, it is also possible that the nuclear and chloroplast genomes of T. dasystemon have different evolutionary history.

As mentioned earlier, we consider T. sinkiangensis to be a member of subg. Tulipa, even though T. sinkiangensis has a style (an original plesiomorphy). Although many phylogenetic trees in our study supported this anomalous species to be the basal taxon of Clade T1 (Figs. 3 and 4), our plastid phylogenetic tree and the reticulate evolution analysis support it as the sister taxon of the entire subg. Tulipa (Figs. 2 and 8e). Some other results that stand out within the topology of subg. Tulipa are that T. thianschanica is sister to T. iliensis and T. tetraphylla, rather than T. thianschanica var. sailimuensis (Figs. 3 and 4). For this reason, we feel that T. thianschanica should not be treated as a synonym of T. iliensis and that T. thianschanica var. sailimuensis should be treated as a distinct species rather than a variety of T. thianschanica [1]. However, it is important to be cautious, the sample of T. thianschanica from NCBI shows a closer relationship with T. tetraphylla (Fig. 1), indicating a potential for T. thianschanica to be part of species complexes. Additionally, we can safely conclude that the T. iliensis sample from NCBI has been misidentified; it should actually be classified as T. altaica. Such identification errors seem to be quite common in subg. Tulipa [36, 41].

For Clade T2 (Fig. 8f), reticulate evolution analysis suggests that T. armena is more likely the sister taxon of Clade acu. We also found that T. praecox and T. acuminata are not closely related, so at least one of them cannot be treated as a synonym of T. agenensis. We wish to point out that because we were unable to sample T. undulatifolia, it is still unclear whether T. eichleri is a synonym of that species.

Finally, we also evaluated the monophyly of the various sections classified within the larger subgenera, but most of these, except for sect. Neo-tulipae, Saxatiles (embedded in sect. Sylvestres), Multiflorae and Spiranthera (only one sample), were found to be not monophyletic. To highlight a few examples, T. tarda and T. urumiensis, which belong to sect. Biflores, are embedded in sect. Sylvestres; the species of sect. Kolpakowskianae are scattered across three clades; species of sect. Vinistriatae and sect. Tulipanum are mixed together; and sect. Tulipa is divided between two distant clades. Previous studies have delved deeper into the sections of tulips and offered specific recommendations [42]. Further examination of morphological, genetic, and other characters in light of these phylogenetic results is warranted in order to better classify the horticulturally popular tulips.

Conclusions

In this study, we newly sequenced 50 transcriptomes of taxa from tribe Tulipeae (targeting all four genera and most of their major subclades) and one outgroup species from tribe Lilieae (Notholirion campanulatum). Using an improved method to splice the transcript fragments, 2594 nuclear OGs and 74 plastid PCGs were employed to reconstruct phylogenetic relationships within the tribe, which confirmed the monophyly of the genera and most of the subgenera in Tulipa (except Orithyia), but indicated that most sections within the Tulipa subgenera are not monophyletic. The phylogenetic posistions of specific problematic taxa has been discussed in detail.

Furthrmore, by measuring sCF/sDF1/sDF2 values, rampant introgression and high levels of ILS were detected, which resulted in strong incongruency among the relationships inferred from different datasets and methods (ML vs. MSC). Reasonable explanations to account for most of these conflicts were found through reticulate evolutionary analyses and polytomy tests. However, we still failed to reconstruct with confidence the evolutionary history among Amana, Erythronium, and Tulipa due to pervasive ILS and introgression. For this reason, we offer two hypotheses: (1) under high-level ILS, introgression appears to be strong enough to have created a “tyranny of the majority” in the ASTRAL analysis, which has been misled to favor a sister relationship between Amana and Tulipa; or (2) ancient plastid capture occurred among these genera, leading to support for Amana being sister to Erythronium, in conflict with nuclear analyses. Further investigations into plastid genome or chromosome structure will be required to verify which of these two topologies best represents the history of the majority of the genome of these plants.

We argue that the Eurasian group of Erythronium species, in particular, and tribal patterns of introgression that may involve Gagea are worthy of further study. Likewise, patterns of polyploidization, which were not considered in our study, likely played an important role in the speciation of Tulipa [15]; it should also be the topic of further investigation within a phylogenomic context.

In light of our findings, we encourage others to explore the potential of transcriptomics as an alternative method for studying plant evolution, especially in taxa with unusually large genomes. Transcriptomics offers a cost-effective and efficient means of obtaining high-quality genetic data, making it a valuable tool for studying plant evolution.

Methods

Plant material and sequencing

Fifty transcriptomes were newly sequenced (Additional file 2: Table S1), including 46 species of tribe Tulipeae and representing all four genera, i.e., Gagea (2 spp.), Amana (3 spp., both of the two major clades [5]), Erythronium (3 spp., all three major clades [12]), and Tulipa (38 spp., 41 accessions, all four subgenera [1]), plus one outgroup species of tribe Lilieae (Notholirion campanulatum). Twenty of those species were field-collected in China (17 spp.) and the USA (2 spp.) in early spring during anthesis, while the others were collected in the Botanical Garden of the University of Fribourg (BGUF) and the Royal Botanic Garden Edinburgh (RBGE).

We extracted total RNA from silica gel-dried or fresh leaves, using an improved CTAB protocol [43]. Sequencing was done by the Beijing Genomics Institute (BGI, Shenzhen, China), Novogene (Beijing, China), and Berry genomics (Beijing, China) on an Illumina Hiseq2500 platform with raw reads-lengths of 150 bp. Although we used both dry and fresh leaf material for RNA isolation, our results and a recent study [16] showed that silica gel-dried leaf samples did not affect the quality of the transcriptome when compared to fresh materials.

Transcriptome data processing and orthology inference

First, we used BOWTIE2 v.2.44 [44] to filter organelle genes (just plastid genes here, as no mitochondrial genes were found in our data) in the quality-controlled transcriptome data of all 50 newly sequenced samples. The reference index (database used by BOWTIE2 for comparison) was generated from 36 whole plastomes of tribe Tulipeae downloaded from NCBI (Additional file 2: Table S4). Finally, 50 transcriptomes were divided into plastid vs. nuclear datasets.

Because our new data did not yield complete plastomes for some species, we also downloaded 14 complete plastomes of Tulipeae (Gagea: 1 sp., Amana: 3 spp., Erythronium: 2 spp. and Tulipa: 7 spp.) and Lilieae (only Notholirion campanulatum) from the National Center for Biotechnology Information (NCBI; http://www.ncbi.nlm. nih.gov) to assess whether the phylogenetic signals provided by these incomplete plastomes were acceptable. In addition, we obtained nuclear transcriptome data of Erythronium japonicum (SRR14576607) from NCBI to complement our phylogenetic analyses with a species representing the genus’ Eurasian clade [12] (Additional file 2: Table S1).

All reads in the plastid dataset were assembled into contigs by GENEIOUS PRIME v.2020.2.4 [45] using default settings, and the contigs were then mapped to an annotated reference plastome (Tulipa thianschanica, MW077738). After realigning the regions with low reliability and obvious mismatch manually, we extracted protein-coding genes (PCGs) from the 50 samples together with 14 supplementary plastomes. After being aligned by translation method in GENEIOUS to avoid frameshift mutations, all the PCGs were further filtered of terminator and initiator errors, large deletions, and low sample coverage (< 50%). A total of 74 PCGs were finally selected as the plastid dataset for subsequent analysis (Additional file 2: Table S4).

All 51 nuclear transcriptomes were assembled de novo in TRINITY v.2.5.1 [46] (default parameters). Open reading frames (ORFs) were predicted by TRANSDECODER v.5.5.0 [47]. After removing redundant sequences of ORFs by CD-HIT v.4.8.1 [48] (parameters -c 0.99 and -n 10), ORTHOFINDER v.2.5.4 [49] was used with the parameters -d and -S blast_nucl (calling nucleotide BLAST) to detect orthologous genes (OGs). Finally, 10,851 candidate OGs were selected from 45,763 OGs by applying the criteria of mode, mean, and median copy numbers ≤ 3, and variance ≤ 9, while allowing a species missing rate of approximately 30% (i.e., the number of OGs with 0 copies is ≤ 16) (Additional file 2: Table S5). We found that species with multiple copies of an OG often contained several fragments of one transcript, which may be caused by RNA degradation or alternative splicing. We therefore used a script (Additional file 3: File S6) to concatenate these fragments, so that all candidate OGs will become single-copy OGs corresponding to the specific samples. All 10,851 OGs were aligned in MAFFT v.7.508 [50] (L-INS-i [51]) and trimmed by TRIMAL v.1.4.1 [52], which removed suspicious sequences (parameters -recoverap 0.75, -seqoverlap 80 and -strictplus). This dataset was further reduced by filtering out OGs with low identical sites (%) in GENEIOUS PRIME. After removing all gaps by GBLOCKS v.0.91b [53], all the OGs were improved by manually deleting the regions containing obvious errors. Finally, OGs with less than 35 sequences (< 70% accessions) were removed once again, resulting in a dataset of 2594 OGs. Then, according to 2594 OGs’ average copy number (before script processing), two sub-datasets, consisting of 1594 OGs (relatively low copy) and 1000 OGs (relatively high copy), were built up respectively. In addition, 2032 of 2594 OGs were also selected to build a dataset, as being considered suitable for phylogenetic analysis through the matched-pair tests of symmetry [54] performed by IQ-TREE2 [55]. In short, we created four nuclear datasets of 2594/2032/1594/1000 OGs.

Phylogenetic tree reconstruction

We used the R package PHYTOOLS 0.2.2 [56] to generate partition files (74 genes × three codon positions, 222 partitions in total) for the plastid dataset, and 2594/1594/1000 gene positions (without using three codon positions) for three nuclear datasets. ML trees were inferred by IQ-TREE2 v2.03 [55] with 1000 bootstrap replicates for the plastid dataset and 1000 ultrafast bootstrap replicates for four nuclear datasets under the optimal substitution models as selected by the parameter -m MFP + MERGE. Moreover, SH-like approximate likelihood ratio test (SH-aLRT) was also performed with 1000 replicates for every ML trees.

RAxML-NG v.1.1 [41] was used to infer gene trees for 2594 orthogroups (OGs) under the GTR + I + G model with 200 bootstrap replicates. These gene trees were then resampled into four datasets based on subsets of 2594, 2032, 1594, and 1000 OGs. Clades with bootstrap values (BS) lower than 10 (or 20/30/40/50) were pruned using NEWICK UTILITIES v.1.6 [57]. After pruning, the resulting gene tree datasets were used as input for reconstructing coalescent-based species trees in ASTRAL v.5.7.8 [23]. The final trees were visualized using FIGTREE v.1.4.4 (Available from: http://tree.bio.ed.ac.uk/software/figtree/)

Problematic taxa identification and polytomy test

After comparing the phylogenetic trees reconstructed from different nuclear datasets, two representative trees, a ML tree (2594 OGs) and a coalescent-based tree (1594 gene trees with BS value ≥ 10 following ASTRAL documentation), were selected for subsequent analyses. IQ-TREE2 was used for calculating “site con/discordance factors” (sCF and sDF1/sDF2) [58] based on parsimony-informative sites in the dataset of 2594 OGs, each node of the two trees was sampled 1000 times with parameter “– scf 1000.”

As sDF1/2 actually represent the proportion of two incongruent gene trees (IGTs) in a quartet (detailed below, “Distinguishing between ILS and introgression”), the nodes which may be affected by ILS and introgression were then determined from the high/imbalanced values of sDF1/2 respectively. We focused on selecting samples near these nodes as being problematic taxa with complex evolutionary histories.

In addition, polytomy tests were carried out in ASTRAL using the coalescent-based tree to verify whether polytomies are a reasonable explanation for the problematic taxa. Following Sayyari and Mirarab [42] and Dong et al. [59], the nodes with P-value > 0.05 were considered to form polytomies.

Distinguishing between ILS and introgression

We used a coalescent simulation approach based on ILS expectations to ask whether cytonuclear discord is best explained by ILS or hybridization. We first generated gene tree simulations under the multispecies coalescent under the species tree in order to generate gene tree distributions, which quantify expected incomplete lineage sorting (ILS). The simulations used the ASTRAL trees generated with BS10-filtered gene trees and both the 1000OG and 1594OG gene sets; species trees were scaled by 2 to account for expected plastid genome Ne (given matrilineal inheritance but both parents yielding offspring [60]). Simulations used Dendropy (https://github.com/ryanafolk/tree_utilities/blob/master/simulate_gene_trees.py). We then compared the simulated gene tree sets with the empirical plastid tree. The comparison was based on calculating pairwise Robinson-Foulds distances for all simulated gene trees, which provided a null distribution of discord. We then compared this null distribution to the actual distances between the observed plastid tree and the simulated trees.

Beyond cytonuclear discordance, notable disparities emerge in phylogenetic trees constructed through coalescent analyses and concatenation analyses based on nuclear gene datasets. In order to determine whether ILS or introgression is the main cause of taxa identified as problematic, we first grouped the problematic taxa into five different groups according to clade (viz. tr. Tulipeae, subg. Clusianae, subg. Eriostemones and two clades of subg. Tulipa) and inferred instances of reticulate evolutionary relationships by using the maximum pseudolikelihood (MPL) method in PHYLONETWORKS V0.15.3 [31]. As a starting tree for network searches, we subsetted samples according to the five groups and deleted OGs with more than 30% of sample missing rate as a result of subsampling, after which the remaining OGs were used for a focused re-inference of the coalescent species tree following methods above. We then performed network searches by allowing zero to five maximum number of hybridizations and 10 independent searches for each reticulation setting to avoid local optima. After the first run, some networks with low scores (proportional to the network’s pseudo-deviance: the lower, the better) were selected as “guide trees” to replace the original ASTRAL coalescent tree and start a new run with a larger maximum number of hybridizations. All networks were visualized using PHYLOPLOTS.

Because the reconstructed phylogenetic tree is based on different datasets and our results were inconsistent regarding the sister group of Amana (either Tulipa or Erythronium, Figs. 2, 3, and 4 and Additional file 2: File S1), and also because neither Erythronium nor Tulipa was strongly supported as the sister of Amana in reticulate evolution analyses (Figs. 8a, b), we employed D-statistics and internal branch lengths test implemented in the programs DFOIL [61] and QuIBL [30], respectively, to further explore the major cause of this unclear phylogenetic relationship.

D-statistics are a site-based hybridization detection method that rely on specific patterns of discordant topologies created by ILS, which are distorted by imbalances when introgression is present. To explain, when considering a species tree, either in the form of quartets (unrooted trees over four taxa contained in the species tree) or rooted triplets (rooted tree over three taxa contained in the species tree), there are three possible gene trees in total: one congruent gene tree (CGT, the topology consistent with species tree) and two incongruent gene trees (IGTs). The presence of ILS will lead to an equal frequency of the two IGTs, while introgression always break this balance because of its directionality [62], but also creating the basis for a probabilistic test for hybridization. D-statistics in DFOIL uses chi‐square tests of significance, taking P-value < 0.01 (instead of Z-score > 3) as the cut-off value to rejects the null hypothesis (no introgression) [62].

QuIBL takes advantage of branch length expectations under ILS rather than topological expectations. Gene trees evolving under ILS are expected to have branch lengths conforming to an exponential distribution, whereas a subset of gene trees subject to introgression will violate this distribution. QuIBL detects whether the distribution of IGTs’ internal branch lengths conforms to the one-parameter (i.e., effective population size, N_e) exponential distribution, with rejection of the hypothesis of exponential branch length distribution suggesting that introgression may be present. The Bayesian information criterion (BIC) was calculated for ILS-distribution (BIC1Dist) and ILS + introgression-distribution (BIC2Dist), following the author, we used ΔBIC (BIC2Dist – BIC1Dist) > 10 as cutoff to accept introgression [30]. As DFOIL and QuIBL can only process a rooted triplet in each run, we prepared a set of subsampled analyses, including (1) Erythronium (4 spp.); (2) Amana (3 spp.); and (3) six species representing all four subgenera of Tulipa (i.e., T. heteropetala, T. heterophylla, T. montana, T. patens, T. sinkiangensis, and T. schrenkii) for individual runs (4 * 3* 6 = 72 in total). For each subsampled analysis, Notholirion campanulatum was used a fixed outgroup for rooting, while one Erythronium sp. and Amana sp. was taken as a first differentiated clade, and one species of Tulipa was taken as a later differentiated clade, these four samples forming a rooted triple. A sequence file comprising 2594 concatenated OGs was used directy as input for DFOIL; gene tree files were inferred by IQTREE2 as input for QuIBL.
